For esp32 HMI advance series products, How to use libraries provided by Elecrow?

edited April 28 in Elecrow HMI Display

1 Select the appropriate library file based on the product screen size, then download it and unzip it.

Path reference:C:\ESP32_Code\CrowPanel_Advanced_HMI\Arduino_lib Series Library

I will use the Advance 7.0-inch product as an example for operation

2 Copy the "LibrariesAdvanced7.0" folder

3 Open Arduino IDE runtime library file path
to find the path, Go to File > Preferences in the Arduino IDE. In the Sketchbook location field, take the path shown there— this is your Arduino runtime library path.

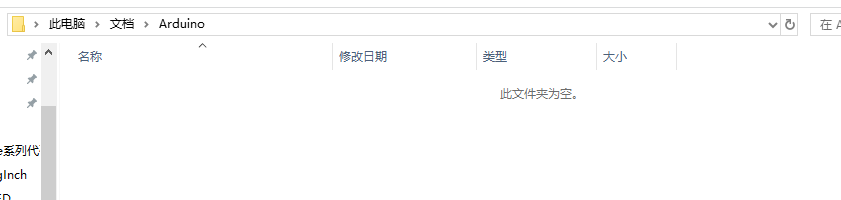

Reference path: C:\Users\14175\Documents\Arduino

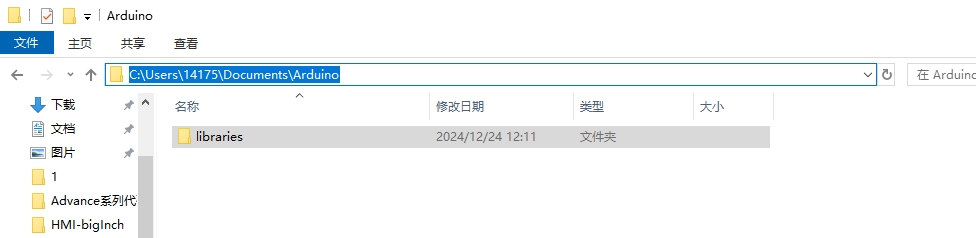

4 Delete the existing libraries folder

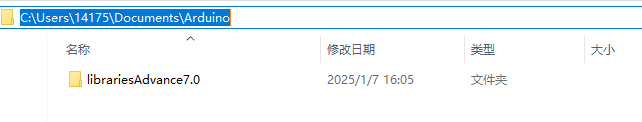

5 Paste the copied library Advanced 7.0 folder into this path

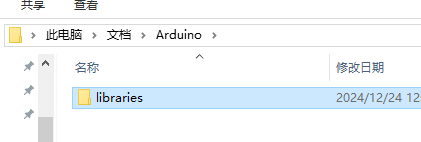

6 Change the folder name to the original libraries

7 Library update completed, restart Arduino IDE.

When using other sizes, changing the library file is the same operation
